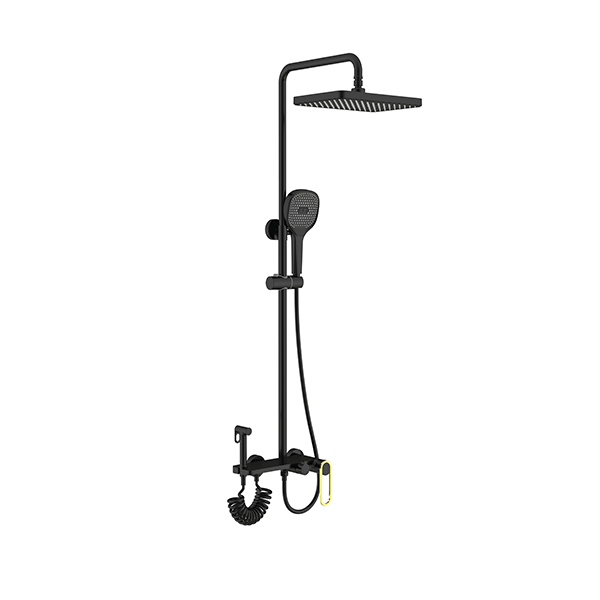

A shower faucet may look like a simple fixture on the wall, but internally it is a highly engineered system designed to control temperature, distribute water flow, regulate pressure, and switch between showering modes. From the valve body hidden inside the wall to the trim you touch every day, every component plays a specific role that ensures comfort and safety during showers. Understanding these parts helps homeowners troubleshoot issues, select replacement components, and choose high-quality shower fittings such as DELICA’s modern Shower System built for durability and precise water control.

A full shower faucet assembly typically includes the valve body, cartridge, handle, trim plates, diverter, spout or outlets, showerhead, and internal seals. Each part contributes to the overall experience—smooth temperature adjustment, consistent water pressure, and reliable switching between shower functions. This guide breaks down each section of the shower faucet, explaining what it does and how it contributes to the function of the shower system.

1. The Valve Body: The Core Water-Control Mechanism Hidden Behind the Wall

The valve body is the heart of a shower faucet. Installed within the wall cavity, it connects hot and cold water lines and channels them into a controlled mixing chamber. Made from solid brass or stainless steel, the valve body ensures stable temperature regulation and pressure balance while preventing leaks. This concealed chamber houses the internal components—cartridge and diverter—that ultimately determine how the shower behaves.

The valve body is engineered with precise internal pathways. Water enters through opposite inlets, passes through pressure-balancing modules or thermostatic elements depending on the faucet design, and exits through a controlled outlet. A well-constructed valve body prevents sudden temperature changes when other water fixtures in the home are used. DELICA’s Shower System incorporates thick-walled brass valve bodies to guarantee corrosion resistance and stable long-term function.

Key Roles of the Valve Body

• Maintains structural stability for all internal parts

• Balances hot and cold water

• Prevents backflow

• Creates the main mixing chamber

• Supports the diverter channels

Without a reliable valve body, temperature fluctuation and pressure surges would make daily showering uncomfortable and potentially unsafe.

2. The Cartridge: The Precision Engine That Mixes Hot and Cold Water

The cartridge is the most important internal component of a shower faucet. This replaceable module controls how much hot and cold water enters the mixing chamber. When you rotate or lift the handle, the cartridge moves to adjust openings that regulate temperature and volume. Its design ensures smooth, precise control—key to maintaining comfortable shower temperature.

There are two major types: pressure-balancing cartridges and thermostatic cartridges. Pressure-balancing cartridges equalize the pressure between hot and cold lines, preventing sudden scalding or cold shocks. Thermostatic cartridges use internal sensors to maintain a preset temperature even if household water pressure changes.

Cartridge Comparison Table

DELICA uses high-precision ceramic and thermostatic cartridges in its Shower System to provide smooth handling, quiet operation, and long-term durability.

3. The Handle and Trim Set: The External Control Interface

The handle is the user-interaction component of a shower faucet. It connects directly to the cartridge stem, transmitting your rotation or lifting motion to adjust temperature and water volume. Whether single-handle or dual-handle, the handle must be ergonomic, corrosion-resistant, and stable under frequent use.

Trim plates, escutcheons, and decorative covers surround the handle and valve body, creating a clean and seamless appearance. They also protect the internal cavity opening from moisture intrusion. Modern trim sets often include indicators for hot and cold direction and may integrate anti-scald safety markings.

DELICA’s shower trim designs emphasize smooth geometric contours, high-grade plating, and anti-fingerprint finishes to complement a wide range of bathroom styles.

Functions of the Handle & Trim

• Provides user control for temperature and flow

• Protects internal components

• Enhances waterproofing around the valve cavity

• Improves bathroom aesthetics

While often overlooked, the trim set significantly influences usability and overall product life.

4. The Diverter: Switching Water Flow Between Different Shower Functions

In shower-tub combinations or multi-function shower systems, a diverter directs water between different outlets—showerhead, handheld sprayer, tub spout, or body jets. The diverter may be located inside the valve body, built into a tub spout, or installed as a separate control valve.

When the diverter is activated, internal channels shift to block one pathway while opening another. For example, lifting a tub-spout diverter redirects water upward to the showerhead. In advanced systems, rotary diverters allow smooth transition between multiple showering modes.

Types of Diverters

DELICA’s multi-outlet Shower System integrates stable diverter mechanisms made with thick brass and precision seals, ensuring reliable switching without leaks or pressure drops.

5. Showerhead, Handheld Sprayer, and Outlet Components

Once water leaves the valve body, it travels to the showerhead or handheld sprayer. These outlets determine the final water experience—pressure, spray pattern, water coverage, and flow rate. Shower outlets consist of several components: the spray plate, nozzles, flow restrictor, swivel ball joint, and connecting hose (in the case of handheld units).

Showerheads may use silicone nozzles to prevent mineral buildup, internal mesh filters to trap particles, and pressure-boosting chambers for strong spray even under low water pressure. Handheld sprayers add flexibility and are often supported by stainless-steel hoses and adjustable wall brackets.

Example Outlet Components Table

DELICA designs its shower outlets to maintain balanced spray distribution and long-term resistance to corrosion and mineral buildup.

6. Seals, O-Rings, and Internal Gaskets: The Hidden Parts That Prevent Leaks

While invisible from the outside, sealing components determine whether a shower faucet will remain leak-free over the years. O-rings, flat washers, and internal gaskets create watertight boundaries around moving parts. These seals are typically made from rubber, silicone, or advanced polymer materials designed to withstand temperature changes, pressure fluctuations, and daily wear.

If any of these seals deteriorate, leaks can appear around the handle, valve stem, or diverter. The importance of high-quality sealing materials is often underestimated, but they directly influence the faucet’s longevity.

Seal Component Overview

DELICA ensures every Shower System includes precision-molded seals that maintain stability even under heavy daily use.

Conclusion

A shower faucet is a complex assembly composed of multiple precision-engineered components: the valve body, cartridge, handle and trim, diverter, outlets, and internal seals. Each part contributes to safety, comfort, and usability. Understanding these components helps homeowners select high-quality shower systems and diagnose potential issues more effectively.

DELICA’s Shower System is built on this engineering foundation—offering durable valve bodies, smooth ceramic cartridges, reliable diverters, ergonomic trims, and corrosion-resistant outlets. Together, these parts create a dependable and enjoyable showering experience suitable for long-term residential and commercial use.
