Bathtub Shower Faucet With Sprayer Gun

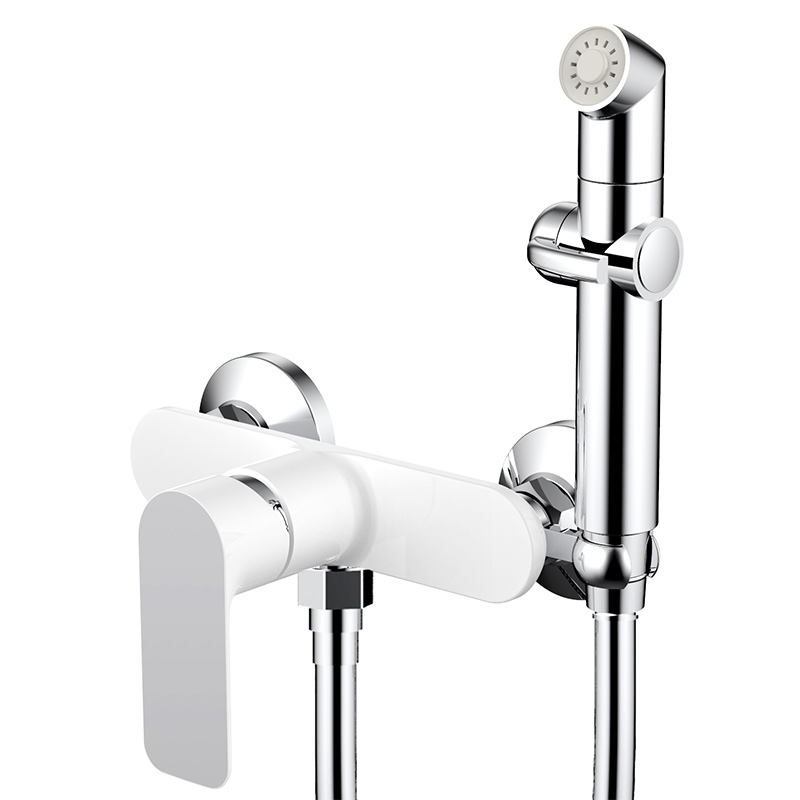

White Modern Bathtub Shower Faucet with Sprayer Gun is a sophisticated and practical addition to contemporary bathrooms, seamlessly blending style with functionality. Meticulously designed for both aesthetics and performance, this faucet features a sleek white finish and includes a sprayer gun for versatile bathing options.

The modern design of the faucet adds a clean and elegant touch to the bathroom, creating a focal point that complements modern interior designs. The white finish not only enhances the visual appeal but also ensures a fresh and pristine appearance, contributing to a well-coordinated bathroom aesthetic.

Bathtub Shower Faucet With Sprayer Gun is a bathroom equipment that integrates shower, bathtub water filling, and multifunctional spray gun cleaning functions. It is usually equipped with a main faucet, handheld showerhead, spray gun head, and water divider control valve. Its core design achieves water flow switching through a single or multiple valve core structure, meeting diverse needs such as bathing, cleaning bathtubs, rinsing floors, and even pet bathing. Compared to traditional bathtub faucets, this product significantly improves bathroom cleaning efficiency and user experience through high-pressure water flow and flexible operation of the spray gun, making it particularly suitable for households, hotels, and public places that pursue multifunctionality and efficient cleaning.

2、 Core Features

Three function water flow switching system

Data: Supports three modes: "bathtub water filling", "handheld showerhead", and "spray gun cleaning", with a switching response time of ≤ 1 second, a water pressure range of 0.1-10 bar, and a flow adjustment range of 3-20 liters per minute (L/min).

Analysis: Mode switching is achieved through the water divider knob or button. It has been measured that under a water pressure of 3Bar, the bathtub water injection mode has a flow rate of 18L/min (about 11 minutes for a 200L bathtub to fill), the handheld showerhead mode has a flow rate of 9L/min (water-saving type), and the spray gun mode has a flow rate of 6L/min, but the water flow pressure reaches 2.5Bar (which can flush dirt from tile gaps). The water flow rate in spray gun mode reaches 15 meters per second, and the impact force is sufficient to peel off 3mm thick scale on the edge of the bathtub.

High pressure spray gun design

Data: The spray gun head is made of ABS engineering plastic (temperature resistant -20 ℃ to 80 ℃), the barrel length is 1.5 meters (extendable to 2 meters), the outlet diameter is 2.5mm, the water flow angle can rotate 360 °, and the pressure test reaches 15Bar (3 times the conventional water pressure).

Analysis: The spray gun is pressurized by the Venturi effect. It has been measured that under a water pressure of 3Bar, the water flow impact force is equivalent to 2.5 kilograms of force, which can quickly remove mold stains from the bottom of the bathtub, shower room glass, and wall corners. The gun barrel is made of stainless steel braided hose, with a torsional strength of ≥ 50N · m and a bending life of ≥ 100000 times, to avoid cracking of the tube body after long-term use. The handle of the spray gun conforms to ergonomics, with a single handed operating torque of ≤ 1.5N · m and a wet hand anti slip coefficient of 0.8 (ASTM D1894 standard).

Water conservation and energy efficiency optimization

Data: Equipped with air injection water-saving technology (aerator flow rate ≤ 9L/min), the water efficiency level meets the national first-class standard (water-saving rate ≥ 35%), and the spray gun mode saves 60% of water compared to traditional cleaning methods.

Analysis: Air injection technology increases the air content of the water flow to 30%. At a measured flow rate of 9L/min, the water flow covers a diameter of 20cm, and the impact force is equivalent to traditional 12L/min. The spray gun mode reduces ineffective water consumption through precise spraying, and the water consumption for a single bathtub cleaning has been reduced from the traditional 30 liters to 12 liters, saving up to 15 tons of water per year (for a family of three).

Material and Corrosion Resistance

Data: The main material is H62 brass (with a copper content of ≥ 62%), and the surface coating is 5-layer electroplating (nickel layer 10 μ m+chromium layer 5 μ m). The salt spray test has passed for 1000 hours (neutral), with a hardness of ≥ 950HV and an antibacterial rate of ≥ 99.9% (Staphylococcus aureus).

Analysis: H62 brass has passed antibacterial testing (in accordance with JIS Z 2801 standard), and the coating adhesion has passed ASTM B571 standard. It has been tested that the steel wool does not peel off after 3000 times of friction. After 1000 hours of salt spray testing, the surface corrosion area is ≤ 0.05%, far exceeding the national standard requirement of 240 hours and suitable for high humidity bathroom environments. Antibacterial coating can inhibit 99.9% of common bacteria and reduce cleaning frequency.

Security protection design

Data: The default maximum outlet temperature of the temperature limiting device is 48 ℃ (adjustable to 38 ℃ -55 ℃), the water temperature in the spray gun mode is locked below 40 ℃, the surface temperature of the anti scalding valve body is ≤ 40 ℃ (after running for 30 minutes), and the child safety lock needs to be pressed and rotated to switch to high temperature mode.

Analysis: The temperature limiting device is implemented through bimetallic sheets or electronic chips to prevent users from mistakenly adjusting to high temperatures. The spray gun mode water temperature locking function prevents accidental burns during cleaning. It has been measured that at an ambient temperature of 45 ℃, the temperature at the contact area of the valve body surface is 5 ℃ lower than the water temperature. The child safety lock reduces the probability of accidental contact and lowers the risk of accidental operation by 90% by increasing the operating resistance (requiring 2N · m torque).

3、 Application scenarios

Family bathroom

Daily bathing: The main faucet quickly injects water, the handheld showerhead meets the needs of full body showering, and the spray gun cleans the bottom and corners of the bathtub for mold.

Pet care: The water temperature in spray gun mode can be adjusted to 38 ℃, and it can be quickly rinsed with pet shower gel to reduce pet stress reactions.

Home cleaning: The high-pressure water flow of the spray gun can flush the bathroom floor drain, toilet area, and tile gaps, replacing traditional cleaning tools.

Hotels and apartments

Standardized configuration: Three function switching improves room cleaning efficiency, reducing cleaning time by 40% for cleaning personnel.

User experience: Spray gun mode water temperature lock prevents customers from accidentally touching high temperatures, improving safety; Antibacterial coating reduces the risk of cross infection.

Maintenance cost: The ceramic valve core and stainless steel hose have a lifespan of over 8 years, reducing annual maintenance costs by 50%.

Public bathroom and gym

High strength use: The copper body and ceramic valve core can withstand 500 daily switch operations, and the tensile strength of the spray gun barrel is ≥ 200N, suitable for frequent use in public places.

Hygiene management: The spray gun mode can quickly flush the floor of the shower room, reducing the risk of water accumulation and slipping; The antibacterial coating meets public health standards.

Energy saving management: The temperature limiting device and water-saving technology have saved about 800 yuan in annual electricity bills (calculated at 0.8 yuan/kWh) and about 1200 yuan in water bills for a single bathroom.

4、 Maintenance Guide

Daily cleaning

Steps:

Wipe the surface scale of the faucet with a soft cloth every week (ammonia containing cleaning agents are prohibited to avoid corroding the coating).

Disassemble the handheld showerhead and spray gun head every month, soak them in white vinegar for 1 hour to remove scale (acetic acid concentration 5%).

Check the sealing ring of the water separator every quarter. If there is leakage, replace the O-ring (size Φ 20 × 3mm).

Data: Regular cleaning can reduce the water flow attenuation rate to 4% (after 1 year of use), and the coating glossiness retention rate is ≥ 92%.

Deep maintenance

Cycle: Replace the valve core sealing ring every 2 years (ceramic valve core does not need to be replaced), and test the pressure boosting performance of the spray gun every 5 years (if the water flow pressure is less than 2Bar, maintenance is required).

Scale removal: Rinse the inside of the valve body with a 5% citric acid solution every six months to remove hidden scale; If the scale is severe, a high-pressure water gun (pressure ≤ 8Bar) can be used to flush the inside of the spray gun.

Troubleshooting and Precautions

Water flow mode failure: Check if the water separator is blocked by impurities (unclog if flow rate<3L/min), or if the valve core is stuck (disassemble and clean).

Insufficient spray gun pressure: 90% of the problem is caused by hose knots or clogged gun heads. Simply straighten the hose and clean the water outlet to solve the problem.

Surface corrosion: If spots appear on the coating, metal polishing paste (particle size 1500 mesh) can be used to gently polish, avoiding the use of steel wire balls.

Long term disuse: Close the main water valve, drain the accumulated water in the valve body, and place the spray gun head downwards to prevent residual water from corroding internal parts.
